CCG Oil Flowmeter is an oil specific positive displacement flowmeter which is widely used for boiler, diesel engine and fuel oil, and is especially suitable for small capacity and or low viscosity oil handling instruments.

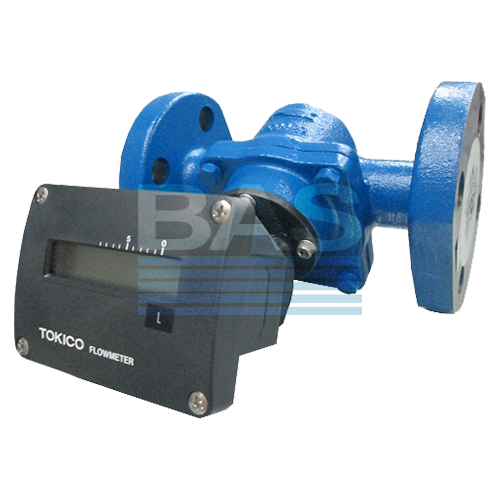

Tokico digital flow meter CCG electronic series has a counter made of plastic material and can be adjusted up to 45° and 90°. The counter unit provides normal and counter flow detection functions. The digital display is easy to read up to 8 digits, it's just that the display size is small. The calculation display settings can be reset to 0 again. Then the flow meter is made with low pressure loss.

The flow meter design is simple and easy to use. The flow meter battery lasts up to 3 years.

Liquid used : Kerosene, light oil (gasoline, diesel), heavy oil (oil, crude marine oil, crude palm oil)

Accuracy : ±0.5%
Series : FGBB (CCG Electronic Digital)

Size : 3/4 Inch

Flow Range:
Kerosene : 100~1,250 l/h
Light Oil : 40~1,250 l/h
Class A Heavy Oil (Oil) : 20~1,250 l/h
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 10~1,250 l/h

Liquid Viscosity:
Kerosene : 1.2cP
Light Oil : 3cP
Class A Heavy Oil (Oil): 10cP
Class B Heavy Oil (Crude Marine Oil, Crude Palm Oil) : 50cP~300cP

Maximum Pressure: 10 Kgf/cm2
Hydraulic Pressure Test : 20 Kgf/cm2
Flange: JIS 10K

Maximum Temperature : 120 °C

Material: Cast Iron
